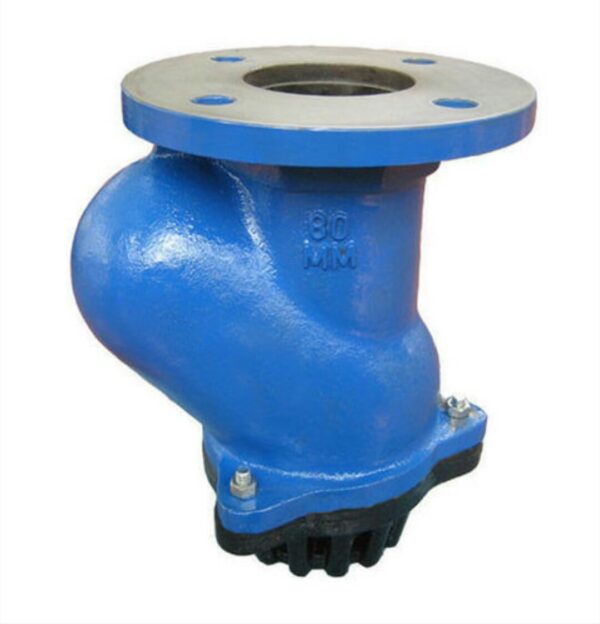

CI BALL TYPE FOOT VALVE

A ball type foot valve is typically installed at the bottom of a suction pipe or a pump intake line to prevent backflow of fluids and debris. It consists of a ball-shaped disc or sphere that moves in response to fluid pressure, allowing flow in one direction while preventing reverse flow.

Benefits of a ball type foot valve:

1. Prevents backflow: The primary function of a ball type foot valve is to prevent backflow of fluids and debris, ensuring that only desired fluids are allowed to pass through the valve.
2. Protects pumps and equipment: By preventing backflow, a ball type foot valve helps protect pumps and other equipment from damage caused by reverse flow or debris entering the system.
3. Low pressure drop: Ball type foot valves typically have low pressure drop, which means that they allow for efficient flow of fluids without causing significant resistance or loss of pressure.
4. Durable and reliable: Ball type foot valves are usually made from durable materials such as stainless steel or PVC, and are designed to withstand harsh environments and prolonged use, making them reliable for long-term operation.

Technical specifications of a ball type foot valve:

1. Construction material: Ball type foot valves can be made from various materials, including stainless steel, brass, PVC, and other corrosion-resistant materials, depending on the application and fluid being handled.
2. Size range: Ball type foot valves come in various sizes, typically ranging from 1/2 inch to several inches in diameter, to accommodate different pipe sizes and flow rates.
3. Pressure rating: Ball type foot valves have different pressure ratings, which determine the maximum pressure they can withstand without leaking or failing. Pressure ratings can vary depending on the material and design of the valve.

Applications of a ball type foot valve:

1. Pumping systems: Ball type foot valves are commonly used in pumping systems, particularly in applications where it is important to prevent backflow and protect the pump from damage.
2. Irrigation systems: Ball type foot valves are used in irrigation systems to prevent backflow of water and debris, ensuring that only clean water flows through the system.
3. Marine applications: Ball type foot valves are used in marine applications such as boats, ships, and offshore platforms to prevent backflow and protect pumps and equipment from damage caused by seawater and debris.
4. Industrial processes: Ball type foot valves are used in various industrial processes where preventing backflow and protecting equipment is critical, such as in chemical plants, oil refineries, and wastewater treatment plants
