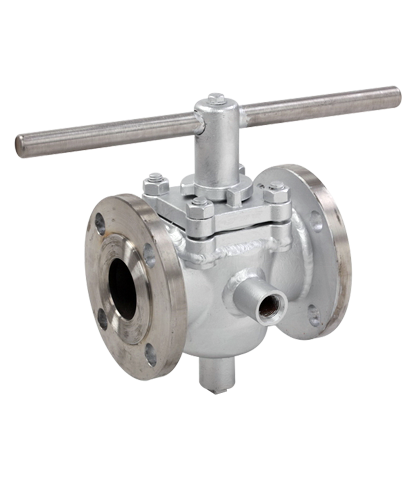

Jacketed Plug Valve

A jacketed plug valve is a type of flow control valve that features a jacketed body designed to control the temperature of the fluid passing through it. It typically consists of a cylindrical body with a plug that can be rotated to open or close the flow passage. The jacketed body allows for temperature control of the fluid by circulating a heating or cooling medium around the valve.

Benefits of a jacketed plug valve:

1. Temperature Control: The main benefit of a jacketed plug valve is its ability to control the temperature of the fluid passing through it. The jacketed body allows for circulation of a heating or cooling medium, which helps to maintain the desired temperature of the fluid in the valve, making it ideal for applications where temperature control is critical, such as in processes involving viscous fluids, bitumen, or molten materials.
2. Versatile Flow Control: Jacketed plug valves provide precise flow control, allowing for throttling or shut-off operations. They can be used for a wide range of fluids, including gases, liquids, and slurries, making them suitable for various applications in different industries.
3. Corrosion Resistance: Jacketed plug valves are typically constructed with materials that are resistant to corrosion, such as stainless steel or other corrosion-resistant alloys. This makes them suitable for handling corrosive fluids, preventing damage to the valve and ensuring its long-term durability.

Technical Specifications of a jacketed plug valve:

1. Size Range: Jacketed plug valves are available in different sizes, ranging from small valves used in residential or commercial applications to large valves used in industrial processes. Sizes typically range from 1/2 inch to 24 inches or larger, depending on the manufacturer and application requirements.
2. Material: Jacketed plug valves are commonly made from materials such as stainless steel, cast iron, or other corrosion-resistant alloys, depending on the application requirements, fluid properties, and environmental conditions.
3. Temperature Ratings: Jacketed plug valves are designed to withstand specific temperature conditions, and their specifications should be selected based on the intended application requirements and operating conditions. The jacket is typically designed to withstand high temperatures for heating applications or low temperatures for cooling applications.

Applications of a jacketed plug valve:

1. Petrochemical and Chemical Industries: Jacketed plug valves are commonly used in petrochemical and chemical processes where precise temperature control is critical. They can be used for processes involving high-temperature fluids, such as bitumen or molten materials, where maintaining the desired temperature is important for process efficiency and product quality.
2. Food Processing and Pharmaceutical Industries: Jacketed plug valves are also used in food processing and pharmaceutical industries where strict temperature control is required during processing to ensure product quality and safety. They are suitable for handling temperature-sensitive fluids or materials in these industries.
3. Other Applications: Jacketed plug valves can be used in various other applications, such as in power plants, oil and gas refineries, pulp and paper mills, and other industries where temperature control is crucial for efficient operation and product quality.
